PRODUCT list

Material: Carbon Steel Finishing: Powder Coated Casted handle Heat Treated: Quenched and Tempered .Minimum Breaking Loading: 3.5 Times to WLL Packing: Carton box then Steel Pallet

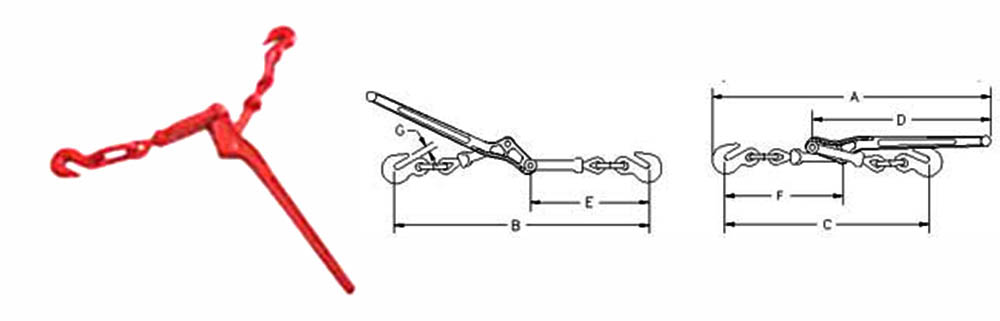

Min-Max Chain Size (in.) WLL (lbs.) Proof load (lbs.) Ultimate Load (lbs.) Weight Each (lbs.) Handle Length (in.) Tak Up (in.) Dimensions (in.) A B C D E F G 1/4-5/16 2200 4400 7800 3.68 11.42 3.75 18.5 17.3 14.17 11.42 8.27 8.07 .35 5/16-3/8 5400 10800 19000 8.15 16.00 4.50 24.13 22.13 17.88 16.00 10.38 10.38 .50 5/16-3/8 6600 13200 19000 8.25 16.00 4.50 24.13 22.13 17.88 16.00 10.38 10.38 .50 3/8-1/2 9200 18400 33000 12.55 18.69 4.50 28.75 25.75 21.25 18.69 12.31 12.38 .63 1/2-5/8 13000 26000 46000 23.13 21.00 4.75 31.25 29.75 25.00 21.00 14.63 13.75 .72
