Material: Carbon Steel C1045 Finishing: Powder Coated Heat Treated: Quenched and Tempered Minimum Breaking Loading: 3.5 Times to WLL Packing: Carton then Steel or Wooden Pallet

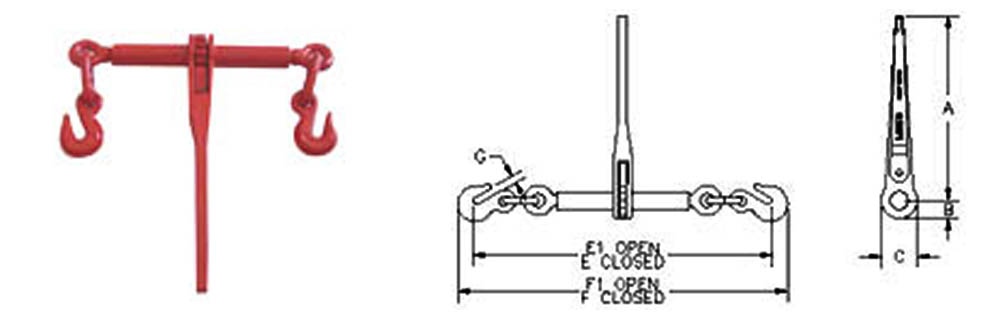

Min-Max Chain Size (in.) Working Load Limit (lbs.) Breaking Load (lbs.) Weight Each (lbs.) Handle Length (in.) Barrel Length (in.) Take Up (in.) Dimensions (in.) A B C E E1 F F1 G 1/4 2600 9100 3.64 7.16 8 6.0 7.16 .89 1.77 16.22 21.26 17.79 31.23 .35 5/16-3/8 5400 19000 10.35 14 10 8.0 14.00 1.38 2.75 22.94 30.94 25.13 33.13 .50 5/16-3/8 6600 23100 10.55 14 10 8.0 14.00 1.38 2.75 22.94 30.94 25.13 33.13 .50 3/8-1/2 9200 33000 11.23 14 10 8.0 14.00 1.38 2.75 25.25 33.25 27.63 35.63 .63 1/2-5/8 13000 46000 15.86 14 10 8.0 14.00 1.38 2.75 26.38 34.38 29.44 37.44 .72
